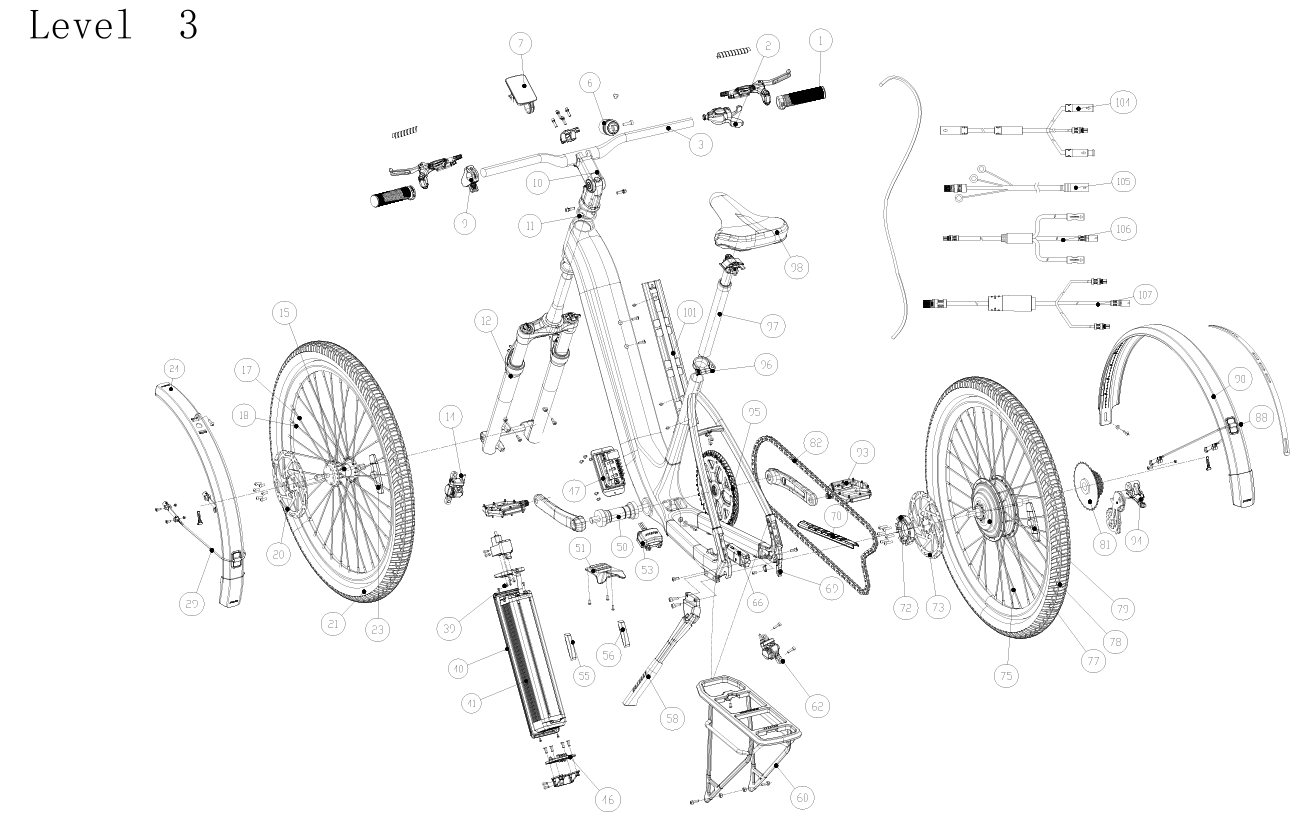

Level 3 Exploded View

Level 3 Exploded View

  • 1. Grip set: 19005-3000070
  • 2. Rear shifter: 19300-1000189
  • 3. Handlebar: 19005-2200020
  • 6. Headlight: 19004-6100052
  • 7. Display:19004-2100092
  • 9. Throttle: 19004-5200022
  • 10. Stem:19005-5000040
  • 11. Headset:19005-6100012
  • 12. Fork: 19005-1100050
  • 14. Front brake assembly Tektro HD-E3520:19008-5000250
  • 15. Front wheel assembly:19100-0700047
  • 17. Front non-drive side spokes (13GA/258mm): 30322-0258002-kit
  • 18. Front drive side spokes (13GA/260mm): 30322-0260002-kit
  • 20. Front 180mm brake rotor:19003-8000085
  • 21. Front 27.5x2.2 tire: 30340-2722004
  • 23. Front wheel reflector:  30350-0000002
  • 24. Front fender: 19009-1100030
  • 29. Front fender stay:19009-1300040
  • 39. Battery E-Lock assembly: 19004-4400112
  • 40. Battery cover:19004-9000112
  • 41. Battery: 30441-3620008
  • 46. Battery terminal assembly: 31310-0508009
  • 47. Controller:19004-1200030
  • 50. Torque sensor:19004-5400010
  • 51. ACU cover: 31310-0410014
  • 53. ACU:19004-1300022
  • 55. Left taillight: 19004-6200032
  • 56. Right taillight:19004-6200042
  • 58. Kickstand: 19010-6200030
  • 60. Rear rack:19010-2000150
  • 62. Rear brake assembly Tektro HD-E3520:19008-2200070
  • 66. E-Wheel lock: 30432-0000003
  • 69. Derailleur hanger: 30760-0090001
  • 70. Chainstay guard: 31224-0000012
  • 72. E-wheel hub lock plate: 19004-3200032
  • 73. Rear 180mm brake rotor: 19003-8000085
  • 75. Rear spokes NDS(12GA/208mm):19003-2000120
  • 77. Rear wheel assembly: 19003-0200130
  • 78. Rear 27.5x2.2 tire:19300-1000297
  • 79. Rear wheel reflector: 30350-0000002
  • 81. 8 speed cassette: 19300-1000193
  • 82. 8 speed chain: 30634-0122003
  • 88. Rear fender stay:19009-1400010
  • 90. Rear fender:   ST R: 19009-1200030,  ST L: 19009-1200050,  SO R: 19009-1200040, SO L: 19009-1200060*
  • 93. Pedal set: 19007-2000010
  • 94. Rear derailleur: 19007-2000010
  • 95. Crankset: 19300-1000193
  • 96. Seat post clamp: 19005-7200030
  • 97. Seat post: S/T Sz. L / S/O Sz. R & L: 19005-7100020, S/T Sz. R: 19005-7100060 *
  • 98. Saddle: 19005-8000031
  • 101. Cable cover plate (battery compartment): 19004-9000102
  • 104. Front and rear lights wire harness: 19004-8000162
  • 105. Motor wire harness: 19004-8000172
  • 106. Throttle & brake sensor wire harness: 19004-8000222
  • 107. Main display wire harness: 19004-8000192
