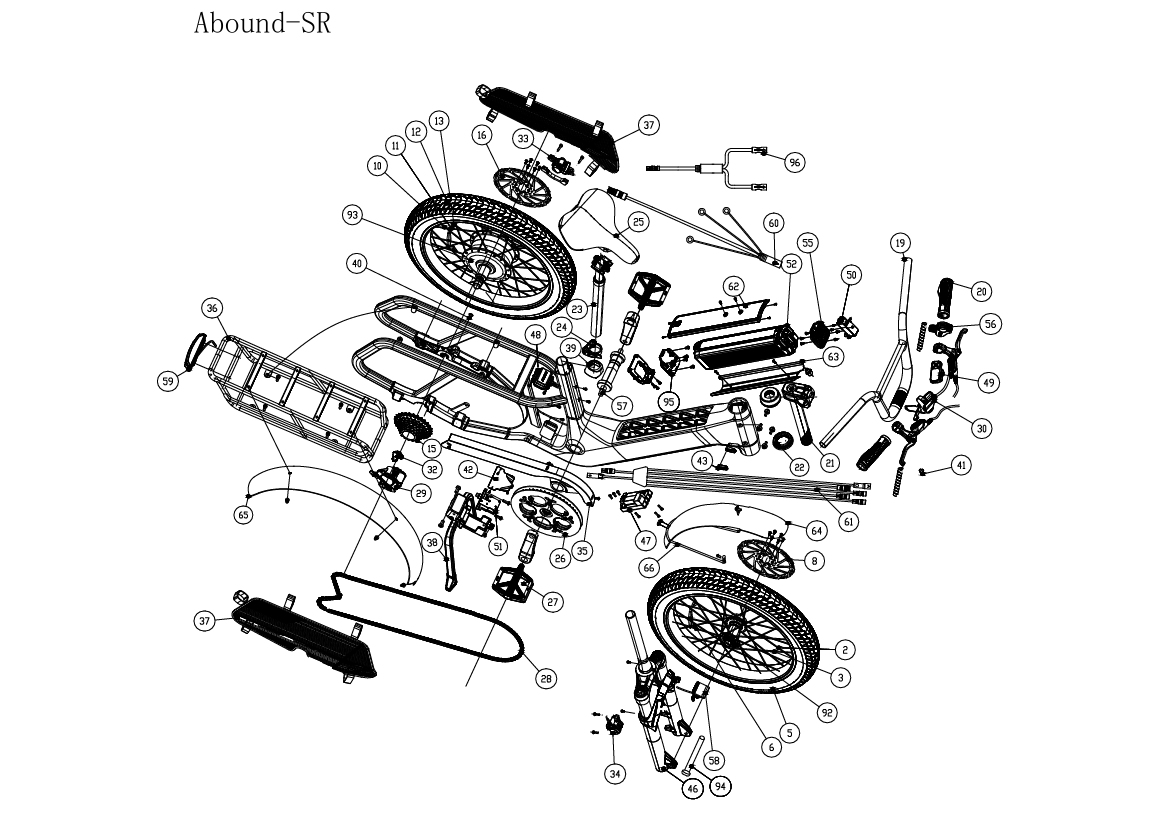

Abound SR Exploded View

Abound SR Exploded View

• 2. Front non-drive spokes: 19003-2000110-kit
• 3. Front drive side spokes: 30322-0175002-kit
• 5. Front 20x3.0 tire: 19003-4100050
• 6. Front wheel reflector: 30350-0000008
• 8. Front 180mm brake rotor: 19300-1000218
• 10. Rear drive side spoke: 19003-2100010-kit
• 11. Rear non-drive side spoke: 19003-2000100-kit
• 12. Rear 20x3.0 tire: 19003-4100050
• 13. Rear wheel reflector: 30350-0000009
• 15. 8 speed cassette: 19300-1000193
• 16. Rear 203mm brake rotor: 19003-8000010
• 19. Handlebar: 19005-2000030
• 20. Grip set: 30530-1212020
• 21. Stem: 19005-5000030
• 22. Headset assembly: 19005-6100030
• 23. Suspension seatpost: 19005-7100050
• 24. Seatpost clamp: 19005-7200030
• 25. Saddle: 19005-8000034
• 26. Crankset: 19006-1000050
• 27. Pedal set: 19006-2000020
• 28. 8 speed chain (122 link): 30634-0122003
• 29. Derailleur: 30720-0800003
• 30. Shifter: 19300-1000189
• 32. Derailleur hanger: 30760-0080001
• 33. Rear brake assembly Tektro HD-E3520: 19008-2200060
• 34. Front brake assembly Tektro HD-E3520: 19008-5000060
• 35: Chain guard: 30921-0000008
• 36. Rear rack: 19010-2000040
• 37. Wheel mesh guard (pair): 19010-2000030
• 38. Kickstand: 19010-6100040
• 39. Seat tube cover: 19012-2000012
• 40. M8 chainstay bolt hole plug (individual): 19012-2300012
• 41. 3-in-1 cable clip: 31225-0000022
• 42. ACU cover: 19004-1400012
• 43. Frame cable grommets (pair): 19012-2500032
• 46. Fork: 19005-1100040
• 47. Controller: 19004-1200010
• 48. ACU: 19004-1300012
• 49. BC147 display: 19004-2100062
• 50. Battery e-lock: 19004-3200022
• 51. Kickstand e-lock: 19004-3200012
• 52. Battery: 19004-4100062
• 55. Upper battery base: 19004-4400062
• 56. Throttle: 19004-5200022
• 57. Torque sensor: 19004-5400012
• 58. Headlight: 19004-6100052
• 59. Taillight: 19004-6200022
• 60. Motor wire harness: 19004-8000092
• 61. Main display harness: 19004-8000102
• 62. Battery cover: 19004-9000072
• 63. Cable cover plate (battery compartment): 19004-9000062
• 64. Front fender: 19009-1100020
• 65. Rear fender: 19009-1200010
• 66. Front fender stay: 19009-1300020
• 92. Front wheel assembly: 19100-0700060
• 93. Rear wheel assembly: 19003-0200120
• 94. Front thru axle: 19003-3400022
• 95. Battery terminal assembly: 19004-4400072
• 96. Brake sensor harness: 19004-8000112
