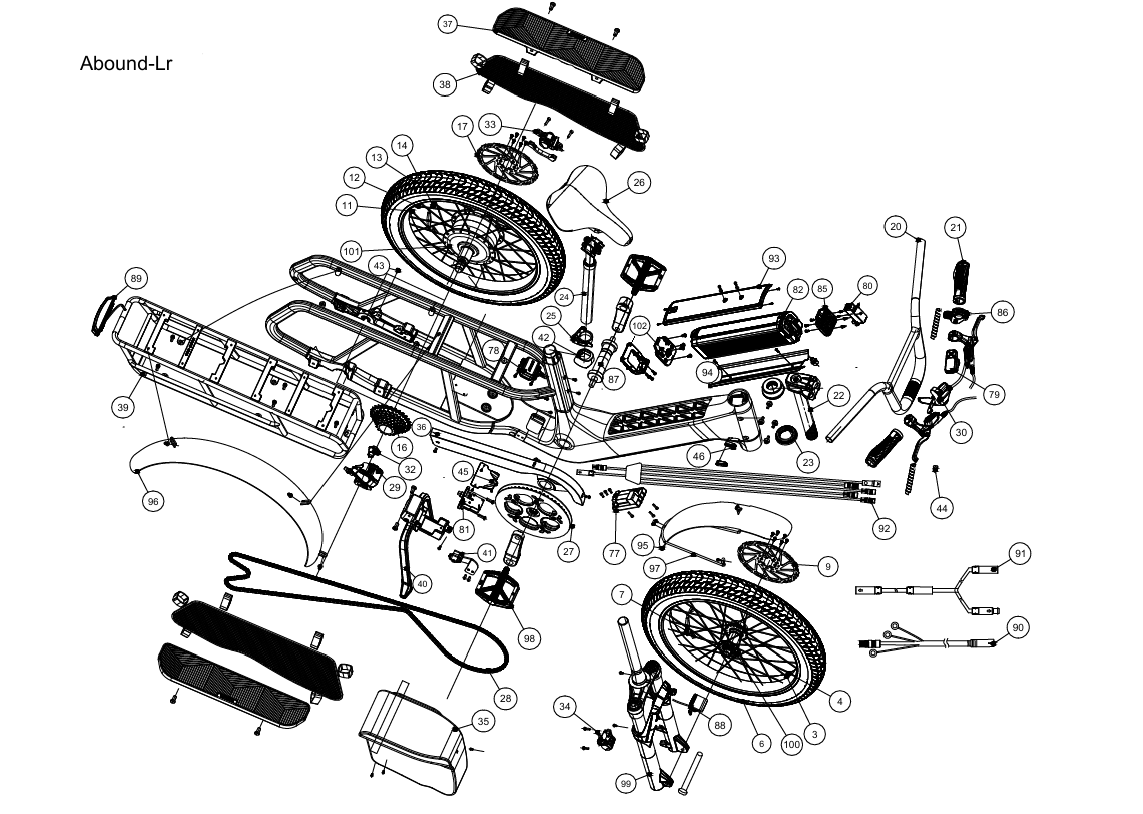

Abound LR Exploded View

Abound LR Exploded View

• 3. Front non-drive side spokes: 19003-2000110-kit
• 4. Front drive side spokes: 30322-0175002-kit
• 6. Front 20x3.0 tire: 19003-4100050
• 7. Front wheel reflector: 30350-0000008
• 9. Front 180mm brake rotor: 19300-1000218
• 10. Front wheel assembly: 19100-0700060
• 11. Rear drive side spokes: 19003-2100010-kit
• 12. Rear non-drive side spokes: 19003-2000100-kit
• 13. Rear 20x3.0 tire: 19003-4100050
• 14. Rear wheel reflector: 30350-0000009
• 16. 8 speed cassette: 19300-1000193
• 17. Rear 203mm brake rotor: 19003-8000010
• 20. Handlebar: 19005-2000030
• 21. Grip set: 30530-1212020
• 22. Stem: 19005-5000030
• 23. Headset assembly: 19005-6100031
• 24. Suspension seat post: 19005-7100050
• 25. Seat post clamp: 19005-7200030
• 26. Saddle: 19005-8000034
• 27. Crankset: 19006-1100030
• 28. 8 speed chain (156 link): 19006-3400011
• 29. Derailleur: 30720-0800003
• 30. Shifter: 19300-1000189
• 32. Derailleur hanger: 30760-0080001
• 33. Rear brake assembly Tektro HD-E3520: 19008-2200060
• 34. Front brake assembly Tektro HD-E3520: 19008-5000060
• 35. Storage bag: 19009-1500060
• 36. Chain guard: 19009-2100020
• 37. Foot board (individual): 30970-4561004
• 38. Wheel mesh guard (pair): 19010-2000170
• 39. Rear rack: 19009-1000090
• 40. Kickstand: 19010-6100040
• 41. Chain guide pulley: 19300-1000204
• 42. Seat tube cover: 19012-2000012
• 43. M8 chainstay bolt hole plug (individual): 19012-2300012
• 44. 3-in-1 cable clip: 31225-0000022
• 45. ACU cover: 19004-1400012
• 46. Frame cable grommets (pair): 19012-2500032
• 77. Controller: 19004-1200010
• 78. ACU: 19004-1300022
• 79. BC147 display: 19004-2100062
• 80. Battery e-lock: 19004-3200022
• 81. Kickstand e-lock: 19004-3200012
• 82. Battery: 19004-4100062
• 85. Upper battery base: 19004-4400062
• 86. Throttle: 19004-5200022
• 87. Torque sensor: 19004-5400012
• 88. Headlight: 19004-6100052
• 89. Taillight: 19004-6200022
• 90. Motor wire harness: 19004-8000232
• 91. Brake sensor harness: 19004-8000112
• 92. Main display harness: 19004-8000102
• 93. Battery cover: 19004-9000072
• 94. Cable cover plate (battery compartment): 19004-9000062
• 95. Front fender: 19009-1100020
• 96. Rear fender:
• Front & rear fender set: 19009-1000090
• 97. Front fender stay: 19009-1300020
• 98. Pedal set: 19006-2000020
• 99. Fork: 19005-1100040
• 101. Rear wheel assembly: 19003-0200120
• 102. Battery terminal assembly: 19004-4400072
